8xIKTP830V1-B-IR9S18MP-URUS-BD

Availability Shipping up to 24h

IP POE Monitoring Kit 8MP 4 Cameras 8MP IR40

As low as €589.79 Regular Price €634.22

Camera resolution: 8MP 3840x2160 @ 20fps
Focal length of the lens: 2.8mm, viewing angle 109 °
Infrared: 4 0M
Number of PoE ports in NVR: 8
Number of cameras supported in NVR: 9
NVR recording resolution: 8Mpix / 5Mpix / 4Mpix / 3Mpix / 1080p / 720p

Skip to the beginning of the images gallery

Customize IP POE Monitoring Kit 8MP 4 Cameras 8MP IR40

IP ZINTRONIC NVR IR9S18MP 9 Channel 8MP 1Sata Network Recorder + €53.94

Quantity

Camera

Camera IP POE Zintronic B8 PRO Dark 8MP SONY IMX415 + €61.73

Quantity

SWITCH POE Zintronic URUS 8FE x POE + 2GE UPLINK

SWITCH URUS POE 8FE x POE + 2GE UPLINK 120W + €40.07

Quantity

Information board

Warning Video Surveillance Sign + €1.94

Quantity

Cable RJ45

Quantity

Connector RJ45

Quantity

* Required Fields

Your Customization

Zestaw do Monitoringu IP POE 8 Kamer 8MP B8 Dark 8xIKTP830V1-B-IR9S18MP-URUS

IP POE Monitoring Kit 8MP 4 Cameras 8MP IR40

In stock

€589.79

Summary

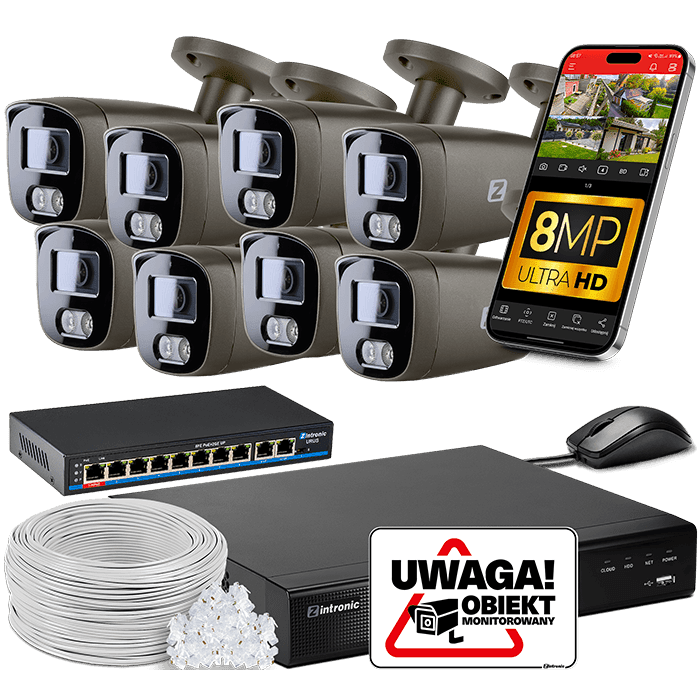

Monitoring set POE 8MP

The set includes eight Zintronic B8 Pro Dark POE bullet cameras, characterized by exceptional functionality and reliability. These cameras are ideal for both indoor and outdoor surveillance. They feature built-in infrared LEDs, ensuring video recording even in complete darkness, and a SONY IMX415 sensor for exceptional image quality and color clarity.

High-quality image: 8MP 3840*2160@25fps
Wide viewing angle: 109° viewing angle
Lens: 2.8mm 8 cameras: 8x bullet (all 8MP)
Infrared (night vision): 30M
High compression: H.265, allowing for more data to be stored on the same drive
Option to expand the set with additional cameras: Yes (up to 9 cameras)
Expand functionality with individual cameras.
Camera configurations: YES
Remote access via phone apps: YES
Email/app notifications: YES

Wraz z zestawem otrzymujecie pełne wsparcie techniczne.

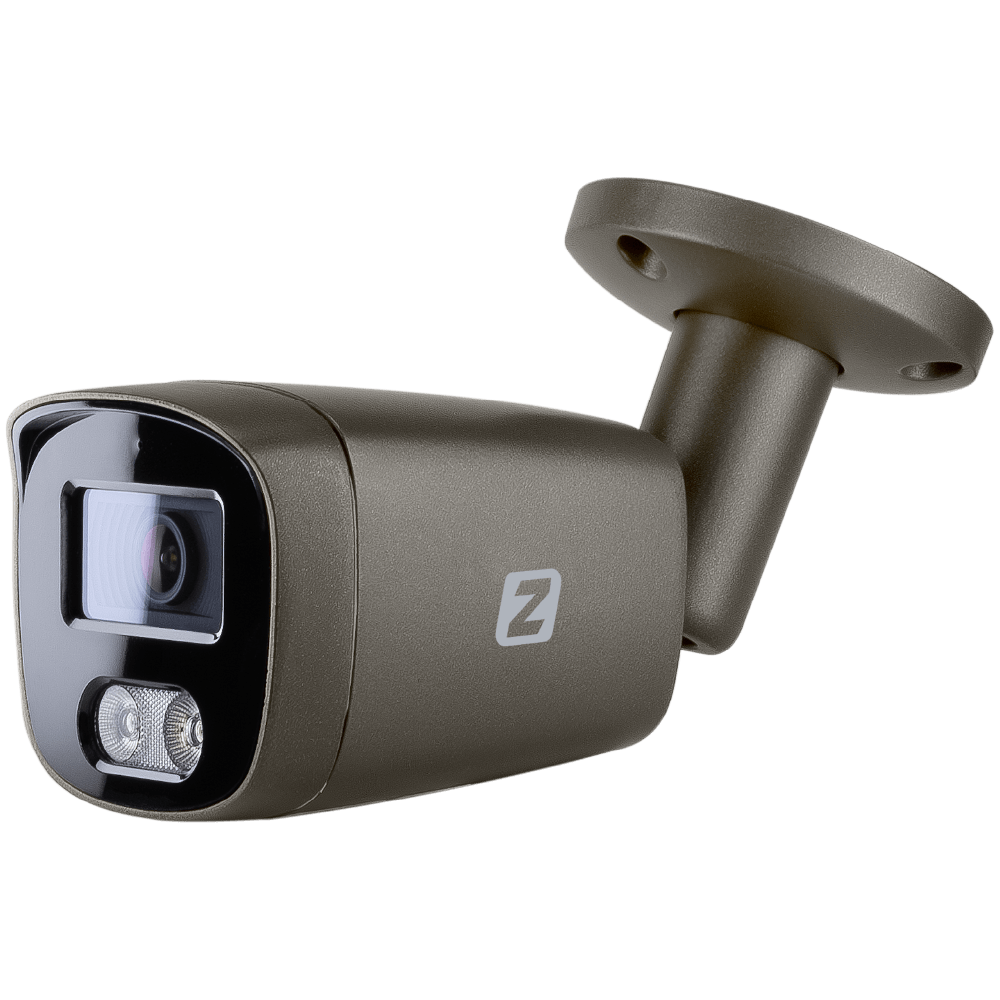

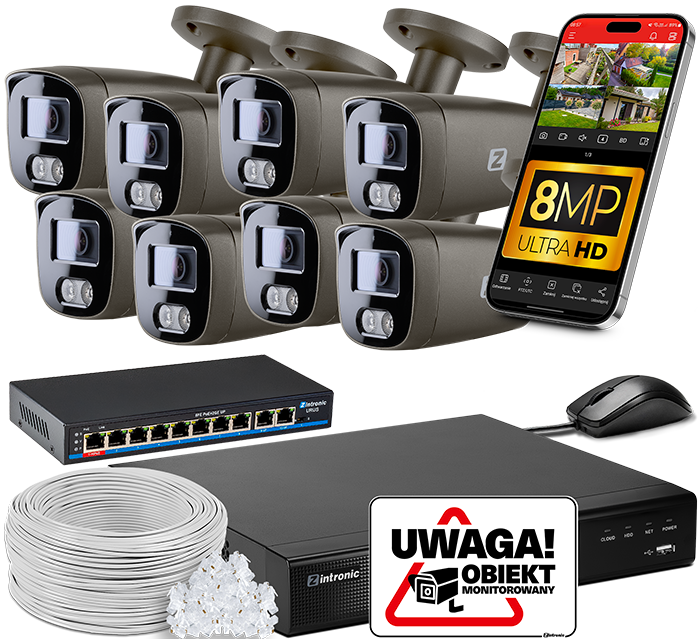

8 kamer tubowych Zintronic B8 Pro Dark POE IKTP830V1-B

kamery B8 Pro IKTP830V1-B wyróżniają się wysoką jakością wykonania i nowoczesnym designem

BENEFITS OF SET

B Series cameras support a high resolution of 8MP 3840*2160 @ 25 fps.
Wired PoE Kit - Cameras simply connect to the ports on the recorder. This makes the system easy to configure and stable. IP66 waterproofing and robust metal housings ensure long-term use and weather resistance.
Modern IR LEDs guarantee nighttime illumination up to 30m. Remote access to the cameras via a computer, browser, or dedicated smartphone app gives you access to your cameras wherever you are.
High-quality build quality and modern camera design ensure the monitoring system blends seamlessly into the building's facade.
Compact size and camera rotation allow for installation anywhere. Perfect for expansion: The recorder supports up to 9 cameras, so you can expand the system and purchase additional cameras as needed.
Easy and straightforward to use, and technical support is provided after purchase.

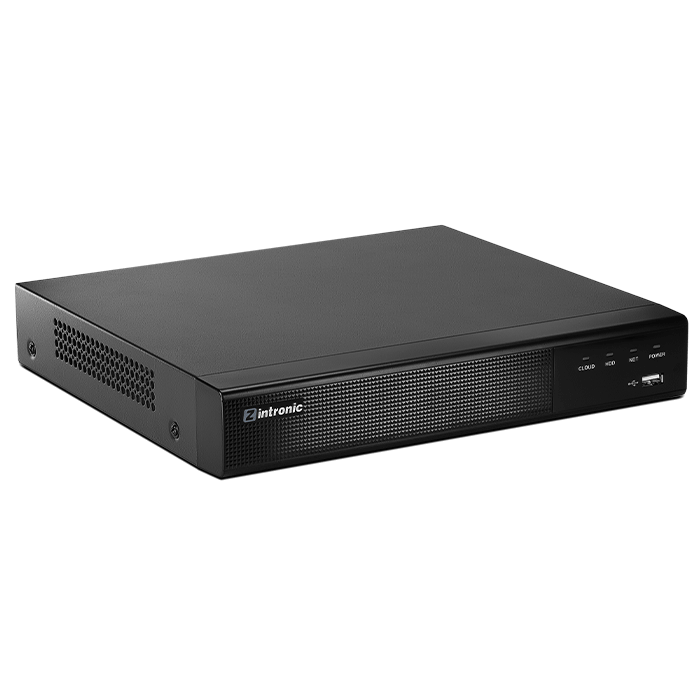

Recorder functions included in the set:

Local and remote viewing (Image can be viewed locally on a monitor/TV next to the recorder or on a computer or smartphone using free software in Polish).
Motion detection - you can set notifications for motion detection in the monitored area. Motion detection is based on an algorithm that analyzes changes in the image seen by the camera, and its sensitivity can be set from 1 to 10. In the options, you can precisely select the detection area you are interested in.
Sending notifications via email/app - When motion is detected, the recorder will send a notification with a photo via email or a phone app.
Storage of recordings - continuous, time-based, or triggered by an event such as motion, alarm, or vandalism (the recording length depends on the installed hard drive capacity and whether event-triggered or continuous recording is selected).
Automatic recording overwriting - if the hard drive is full, the system will automatically overwrite the oldest files.
Privacy mask - if you have a neighbor who doesn't wants to be 'watched' and our camera covers it, we can set up a privacy mask that will cover the property, allowing us to observe the area we are interested in.

Rejestrator Zintronic wysyła powiadomienia na email/aplikacje - w momencie wykrycia ruchu

Aplikacja Bitvision daje możliwość cyfrowego powiększenia dowolnego obszaru wyświetlanego obrazu.

Applications for operation

The intuitive, Polish-language BitVision app allows you to constantly monitor the monitored area and review recorded events. You can also take photos and record videos within the app. You can also digitally zoom in on any area of the displayed image (digital zoom).

Live preview
Incoming notifications in the app
Ability to take photos and videos
Digital zoom on any area of the displayed image
H265 compression - allows you to store twice as much data on a disk/card as the H264 codec.

Dedicated mounting bracket.

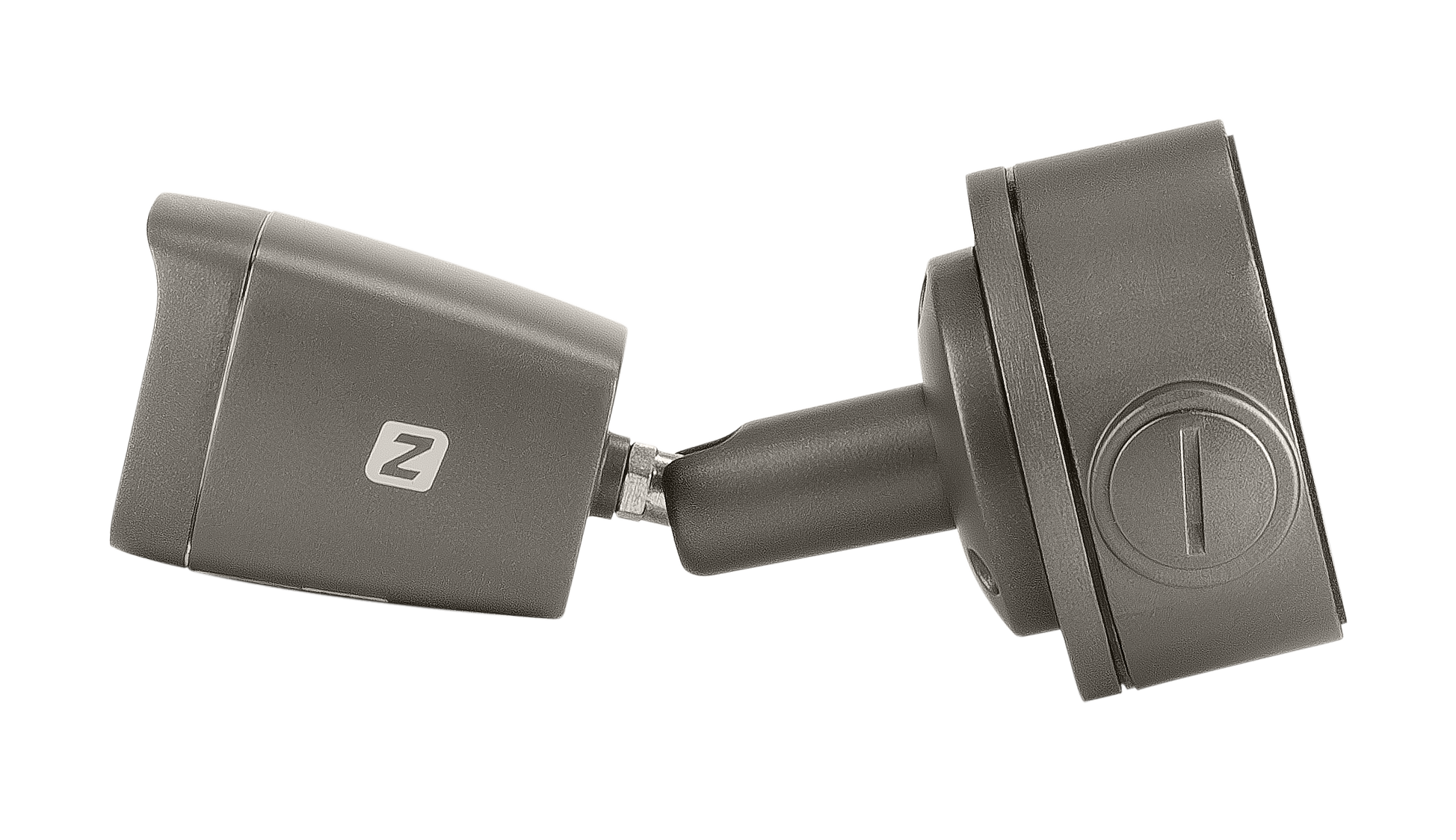

The camera itself is sealed, but you need to ensure the cables coming out of it are hermetically sealed. You can purchase a dedicated sealed mount in our listing, which will allow you to hide the cables while maintaining a sleek appearance. AKU11V2 IP66 Spacer Mount for ZINTRONIC APTI Cameras

AKU11V2 hermetyczny uchwyt zaprojektowany tak, aby schować wszystkie kable dokupisz na zintronic.pl

How to choose a hard drive for your system?

Estimated 8MPx continuous recording time (in days)

2 cameras:

4 cameras:

8 cameras

Dysk 1 TB: 16 dni
Dysk 2 TB: 32 dni
Dysk 4 TB: 64 dni
Dysk 6 TB: 96 dni
Dysk 8 TB: 128 dni

Dysk 1 TB: 8 dni
Dysk 2 TB: 16 dni
Dysk 4 TB: 32 dni
Dysk 6 TB: 48 dni
Dysk 8 TB: 64 dni

Dysk 1 TB: 4 dni
Dysk 2 TB: 8 dni
Dysk 4 TB: 16 dni
Dysk 6 TB: 24 dni
Dysk 8 TB: 32 dni

These are the values approximate because the actual recording time depends on where the camera is placed and what it is looking at (e.g. if the camera is looking at a sidewalk where people are walking, it will use much more space than if it is looking at an empty lawn behind the house).

More Information
EAN	5906506440379
Availability	Shipping up to 24h
Brand	Zintronic
Numer of cameras in set	8
_________________________ Camera Specs _________________________	____________________
Camera	IP POE
Camera type	Bullet
Resolution	8 Mpx
Focal Length	2.8 mm
Viewing angle	109°
Motor-driven lens	None
Supported resolutions	8Mpx (3840x2160)
Frame rate	8.3 Mpx - 20 fps / 5.3 Mpx - 25 fps
Sensor	SONY IMX415
Image processor	NT98566
IR Range	30 m
Motion detection	Yes
Humanoid detection	Yes
Built-in MIC	Yes
Built-in Speaker	No
Alarm	Yes - email, push to apps, alarm
Camera color	Graphite
Ingress Protection	IP67
RESET Button	No
______________________ NVR Specs __________________	____________________
Type of recorder	IP POE
Number of channels	8
Maximum resolution supported	8Mpx - 3840 x 2160
Capacity	80 Mb/s
Number of POE ports	4
PoE standard	IEEE 802.3af/at
Ports	1 port LAN 10/100 Mb/s
Playback of recordings	1-ch - 8Mpx / 4-ch - 2Mpx
P2P	Yes
ONVIF	2.4
Supported HDD	1 x up to 8 TB SATA
HDMI Output	Yes
VGA output	Yes
Video compression	H.265+ / H.265 / H.264+ / H.264
Audio Compression	G.711A / G.711U
ONVIF Protocol	80
Port HTTP	80
Audio inputs	1 CINCH
Audio outputs	1 CINCH
USB inputs	2x USB 2.0
Power	12V DC / 2A
Pc mouse	Yes
Backup	USB / LAN
Recording	Manual, Motion detection, Schedule
Kit's mobile app	Bitvision
Application	iVMS320
Guarantee	2 years (24 months)
