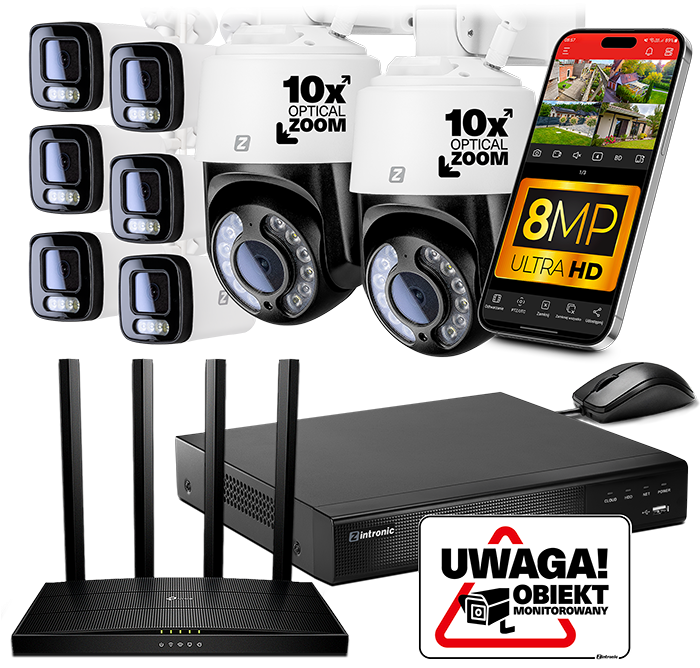

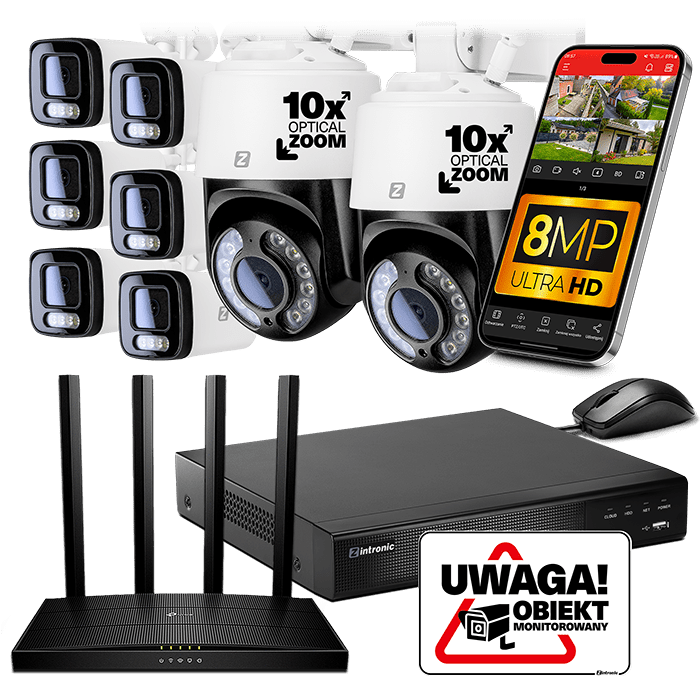

IP Monitoring Kit 5 MP 8 cameras 6xA5 2xP5 White

The set includes 6 Zintronic A5 WiFi tube cameras in White and 2 Zintronic P5 WIFI PTZ cameras in White, which are characterized by above-average functionality and reliability. These cameras are perfect for both indoor and outdoor monitoring. They have built-in infrared diodes that ensure image recording even in complete darkness, and a transducer that guarantees incredible image quality and color clarity.

• High quality image: 5MP - 2560x1920@15fps
• Wide viewing angle: A5 - 109°
• Lens: 2.8mm
• 8 cameras: 6 tube, 2 rotating (all 5mpx)
• Infrared (night vision): 30M/40M
• Audio: Yes (allows audio recording)
• High Compression: H.265 allowing more data to be stored on the same disk
• Possibility to expand the set with additional cameras: Yes (up to 9 cameras)
• Greater functionality through individual camera configurations: YES
• Remote access via phone applications: YES
• E-mail/app notifications: YES

Keep an eye on your cameras wherever you are!

Our equipment is equipped with free software in Polish, which allows you to log in and operate cameras in the most convenient way for you:

• Traditionally on a TV/Monitor (if we have a recorder)
• On your computer via a browser on the local network, IVMS 320 or the Bitvision website.
• Phone/Tablet - Bitvision application

The IR diodes installed in the camera will allow you to view the camera even in the middle of the night. The camera is equipped with new generation IR LEDs, which are able to illuminate the monitored area from a distance of up to 40 meters.

Our camera supports high resolution which makes the displayed image very clear.

The camera has a SONY IMX335 (rotating) and SC5238 (bullet) image sensor and a 2.8mm lens , thanks to which the image quality is exceptional and the viewing angle is 109 °.

Intuitive, BitVision application - allows you to constantly view the monitored area and view recorded events on the recorder's disk. You can also take photos and record videos in the application. It is also possible to digitally zoom in on any point on the projected image (digital zoom).

• Live view
• Incoming notifications on applications
• Possibility to take photos and videos
• The ability to view recordings
• Digital magnification of any area of ​​the projected image x8

The availability of continuous, scheduled, or event-triggered (motion, alarm) recording modes allows you to tailor the operation to your individual needs and hard drive capacity.

The estimated archival recording time for 8 cameras operating at 8 MP resolution (in continuous recording mode) is approximately:

• 1 TB Hard Drive: approx. 1 days
• 2 TB Hard Drive: approx. 3 days
• 4 TB Hard Drive: approx. 6 days
• 6 TB Hard Drive: approx. 12 days

Please Note: These are approximate/rough estimates. The actual recording time heavily depends on where the camera is installed and what it is looking at (for example, a camera facing a busy sidewalk where people walk will consume significantly more storage space than a camera facing an empty backyard lawn).

• Local and remote preview (Image preview can be followed locally on the monitor / TV next to the recorder or on a computer or smartphone using free software from anywhere in the world)
• Motion detection - you can set a notification when motion is detected in the monitored area. Motion detection is based on an algorithm that analyzes changes in the image seen by the camera, and its sensitivity can be set from 1 to 10. In the options, you can choose exactly what detection area you are interested in.
• Sending notifications to e-mail / applications - When motion is detected, the recorder will send us a notification with a photo to an e-mail or a push notification to the application on the phone.
• Saving recordings on the disk - recording either continuous, temporary or triggered by an event type. motion alarm, vandalism (the length of the recording depends on the capacity of the disk that we install and whether we set event-induced or continuous recording.
• Automatic overwriting of recordings - if the disk is full, the system will automatically start overwriting recordings on the oldest files.

1. IP ZINTRONIC NVR IR9S18MP 9 Channel 8MP 1Sata Network Recorder - 1 pc.

2. Rotary camera Zintronic P5 IP WiFi 2.8mm 5 MPX 5MP IR 40M - 2 pcs.

3. IP camera A5 WiFi ZINTRONIC 5MP (2.8mm) WHITE - 6 pcs.

4. Warning Video Surveillance Sign - 1 pc.

5. TP-LINK Archer C6 WIFI AC1200 Router - 1 pc.
