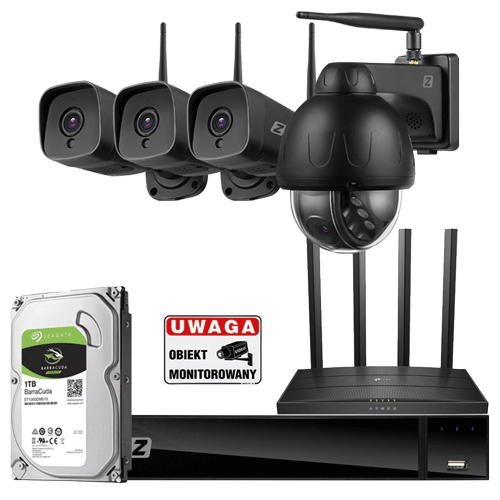

IP Monitoring Set 5 MP 4 cameras 3xA5 1xP5

The set includes 3 Zintronic P5 PTZ WiFi tube cameras in Black and 1 Zintronic P5 WIFI PTZ camera in Black, which are characterized by above-average functionality and reliability. These cameras are perfect for both indoor and outdoor monitoring. They have built-in infrared diodes that ensure image recording even in complete darkness, and a transducer that guarantees incredible image quality and color clarity.

• High quality image: 5MP - 2560x1920@15fps
• Wide viewing angle: 109° viewing angle
• Lens: 2.8mm
• 4 cameras: 3 tube, 1 rotating (all 5mpx)
• Infrared (night vision): 30M/40M
• Audio: Yes (allows audio recording)
• High Compression: H.265 allowing more data to be stored on the same disk
• Possibility to expand the set with additional cameras: Yes (up to 9 cameras)
• Greater functionality through individual camera configurations: YES
• Remote access via phone applications: YES
• E-mail/app notifications: YES

Keep an eye on your cameras wherever you are!

Our equipment is equipped with free software in Polish, which allows you to log in and operate cameras in the most convenient way for you:

• Traditionally on a TV/Monitor (if we have a recorder)
• On your computer via a browser on the local network, IVMS 320 or the Bitvision website.
• Phone/Tablet - Bitvision application

The IR diodes installed in the camera will allow you to view the camera even in the middle of the night. The camera is equipped with new generation IR LEDs, which are able to illuminate the monitored area from a distance of up to 40 meters.

Our camera supports high resolution which makes the displayed image very clear.

The camera has an image sensor SONY IMX335 (rotating) and SC5238 (horn) and a lens with a focal length of 2.8 mm , thanks to which the image quality is exceptional and the width of the viewing angle is 109 °

Intuitive, BitVision application - allows you to constantly view the monitored area and view recorded events on the recorder's disk. You can also take photos and record videos in the application. It is also possible to digitally zoom in on any point on the projected image (digital zoom).

• Live view
• Incoming notifications on applications
• Possibility to take photos and videos
• The ability to view recordings
• Digital magnification of any area of ​​the projected image x8

H265 compression allows you to save twice as much data on a disk / card as the H264 codec.

For example:

1 TB disk with a resolution of 2560x1920 with 4 cameras lasts: 6 days

These are indicative / approximate values ​​as the actual recording time depends on where the camera is placed and what it is looking at (e.g. if the camera is looking at the pavement where people are walking it will use up much more space than if it is looking at the empty lawn at the back of the house)

• Local and remote preview (Image preview can be followed locally on the monitor / TV next to the recorder or on a computer or smartphone using free software from anywhere in the world)
• Motion detection - you can set a notification when motion is detected in the monitored area. Motion detection is based on an algorithm that analyzes changes in the image seen by the camera, and its sensitivity can be set from 1 to 10. In the options, you can choose exactly what detection area you are interested in.
• Sending notifications to e-mail / applications - When motion is detected, the recorder will send us a notification with a photo to an e-mail or a push notification to the application on the phone.
• Saving recordings on the disk - recording either continuous, temporary or triggered by an event type. motion alarm, vandalism (the length of the recording depends on the capacity of the disk that we install and whether we set event-induced or continuous recording.
• Automatic overwriting of recordings - if the disk is full, the system will automatically start overwriting recordings on the oldest files.

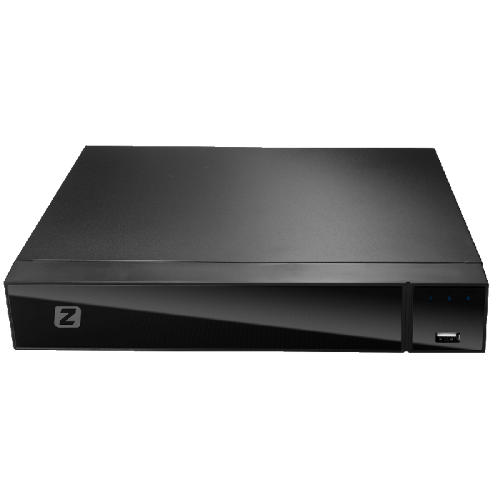

1. APTI-N0921-4KS3 IP NVR Recorder 9 8MP channels - 1 pc.

2. Rotary camera Zintronic P5 Dark IP WiFi 2.8mm 5MP 5 MPX IR 40M - 1 pc.

3. IP camera A5 WiFi ZINTRONIC 5MP (2.8mm) BLACK - 3 pcs.

4. 1 TB SATA III 64MB Hard Drive - 1 pc.

5. Self-adhesive information board - 1 pc.

6. TP-LINK Archer C6 WIFI AC1200 Router - 1 pc.
